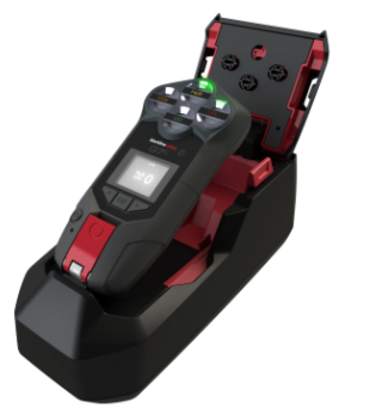

Blackline G7c Dock

G7c Dock requires no initial setup — all communications and configurations work out of the
box. G7c Dock leverages Blackline Live cloud-hosted monitoring portal for configuration and
to store test data for compliance tracking and reporting.
With G7c Dock, bump tests and are straightforward, performed by simply placing
G7c into the dock and using the inserted G7c device's LCD screen and menu system. If a G7c
device is due for a bump test, it will automatically perform the required test actions when placed into the dock and the lid closed. All test results are communicated in real-time to the user's Blackline Live account after test actions are complete. The G7c dock is there to enable bump testing to be completed at start of every shift before using your G7c in the confined space.


ESS Code: HPGD.163

• Size & Weight - Size: 215mm x 100mm x 95mm (8.46”, 3.94”, 3.74”) Weight: 202g (7.1oz)
• Desk mounting
• Four customisable gas inlets, one purge port
• Diaphragm pumps
• Bump test - 25-second bump test, less than 10 seconds of gas applied during a bump


• Gas Usage - Optimized gas delivery (estimated flow 300ml/min)
• Power Supply - Input voltage: 5 VDC @ 1000 mA
• Power connector: Micro-USB 120/240 VAC power adaptor and USB cable included
• Regulatory Compliance - RCM | CAN ICES-3(B)/NMB-3(B) | FCC | CE
• Warranty - Two year warranty
• Blackline Live Web Application
• Cloud-hosted safety monitoring web application is highly customisable for every customer requirement. Includes live map, employee address book, user roles, alert management, device configurations, alert setups and reporting.


• 1 x G7c Dock
• 1 x Quad gas bottle (sale item)
• 1 x Regulator and Hose
