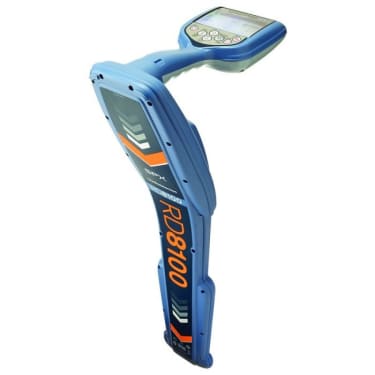

Radiodetection RD8100 Locator Rechargable

Radiodetections RD8100 Recharge, li Ion powered multi frequency locator provides operators with a longer lasting and green solution for utility tracing and mapping activities.  Passive utility locating includes the use of Power or Radio modes.  Power mode is enhanced with the option to use the RD8100s’ dedicated power filters enabling the operator to select a single power frequency coming off a cable.  In this instance the locators utility compass and auto depth features provide the operator with a higher degree of tracing confidence especially when it comes to tracing highly energised power cables.

ESS Code: HCAT.172

• Rechargeable Li Ion Batteries, provides the operator with the latest power source helping to  improve in field product use and convenience, whilst providing you with a greener solution
• Bluetooth connectivity provide a smart integrated solution that help you to improve your survey efficiency by capturing usage information as you trace.   The added benefit of Bluetooth provides you with an option to connect to your own survey devices
• RD Map, connect to Radiodetection RD Map android based software to record additional information as you map
• Iloc, connect to a Radiodetection Bluetooth enabled TX10 Transmitter and control it from the locator.  Increase the power output, change the frequency or put the TX10 transmitter into standby mode directly from the locator
• Power Filters, rather than scanning in standard power mode, select a dedicated power frequency to improve your tracing capabilities, especially when you are trying to identify a specific power line


• Li Ion Battery Pack; Custom pack
• Recharge time; 3 hours to 80% from empty with maintenance trickle charging thereafter
• Memory Capacity; 4Gb
• Connectivity; Bluetooth 2.0
• Passive Modes; Power, Radio,
• Power Harmonics 50Hz, 150Hz, 250Hz, 350Hz, 450Hz
• Transmitter Modes; up to 25
• Max Depth Readout Line; 30m
• Max Depth Readout Sonde; 19.5m
• Depth Precision; 3%
• Weight; 2.1kg
• Size; (H)648mm x (W)286mm x (D)125mm
• Power Source; 3 x D Cell (LR20) Alkaline Batteries
• Ingress Protection; IP65


RD8100, 1 x charging lead and mains power.

Lead time: 1 days
