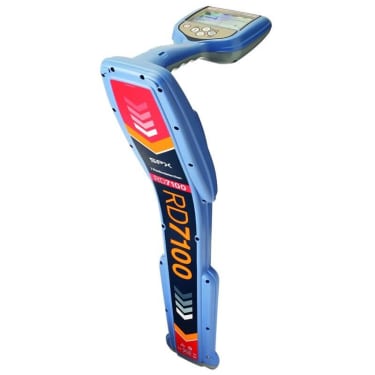

Radiodetection RD7100 DL Locator

Radiodetections RD7100DL multi frequency locator provides operators with a simple to use precision locator with a focus on the water and pipeline industries.  As well as the traditional and often considered industry standard Power, Radio and transmitter modes, the RD7100DL benefits from the inclusion of Cathodic Protection System (CPS) mode used to detect a signal frequently found on  metallic pipelines as well as four Sonde modes to cover the detection of conductive and nonconductive pipelines such as drains and ducts.
The use of a Radiodetection TX signal transmitters provides the operator with increased tracing capabilities as well as the ability to estimate the depth of the utility.  The use of the RD7100DL antenna configuration can be easily used to provide the operator with either a simple guided trace option or at the press of a button the detect style can be changed to allow the operator to focus on a specific task such as Sonde tracing.
Whatever the utility trace application Radiodetections RD7100DL provides the operative with a lightweight, simple solution design to assist with utility tracing tasks.

ESS Code: HCAT.144

• Lightweight and ergonomic, designed with the operator in mind, lightweight with a large LCD display helps to extend infield use with minimal operator strain
• Antenna Configuration, select and set the RD7100DL internal antennas to detect utilities the way you see things best.  Select from Peak, Null, Peak plus or Guidance settings to suit your preferred method of locating utilities.  Each option will provide you with an alternative display so that you can visualise utilities the way you like to see things
• CPS detection, in addition to the standard Power and Radio passive detect modes, the RD710DL has the ability to detect pipelines carrying a Cathodic Protection system signal
• Sonde detection, cast iron, plastic, clay or other pipeline construction materials, the RD7100DL locator has four sonde detect modes enabling tracing of low frequency or high frequency sondes commonly used in the detection of drains and ducting
• Safety and confidence, standard features including Radiodetections StrikeAlert shallow utility alarm and utility compass help to provide the operator with confidence that they are tracing correctly and if utilities are buried close to the surface


• Passive Modes; Power, Radio, CPS
• Transmitter Modes; 512Hz, 640Hz, 8kHz, 33kHz, 65kHz
• Sonde Modes; 512Hz, 640Hz, 8kHz, 33kHz
• Max Depth Readout Line; 30m
• Max Depth Readout Sonde; 19.5m
• Depth Precision; 3%
• Weight; 1.9 kg
• Size; (H)648mm x (W)286mm x (D)125mm
• Power Source; 3 x D Cell (LR20) Alkaline Batteries
• Ingress Protection; IP65


• RD7100DL
