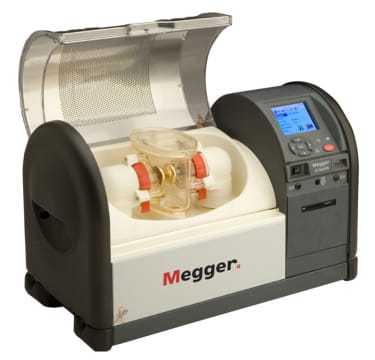

Megger OTS60PB Oil Tester

The Megger OTS60PB automatic portable oil test set will perform accurate breakdown voltage tests on mineral, ester and silicon insulating liquids, providing repeatable results in the field. The test set comes with a lockable electrode gap adjustment ability, offering greater precision. One of the fundamental tests of oil quality is the breakdown voltage test, which is a measure of the oil's ability to withstand electric stress.

A low breakdown voltage can indicate the presence of contaminants such as water or conducting particles. The test voltage of the OTS60PB is electronically controlled to the maximum of 60kV and it has been designed to perform breakdown detection in terms of both voltage and current, which helps the range to comply with any future changes or developments in oil test standards. A unique feature of the Megger OTS60PB is that it provides custom test sequences, with the enhanced ability to download new standards from the Megger website and load them onto the instrument using a USB stick. Test results are identified either by a serial number or asset ID and are time and date stamped. An optional internal printer provides a hard copy of results. The three USB interfaces support PC connection, USB flash drive, external USB printer and barcode scanner.

ESS Code: HOTS.3

  • Tests voltages up to 60kV.
  • Suitable for mineral, ester and silicon oils.
  • Direct output voltage or current breakdown detection.
  • Automatic oil temperature measurement.
  • Precision lockable electrode gap adjustment.
  • Flat electrode gap gauges that will not damage electrodes.
  • Intuitive user interface supports fully automatic operation.
  • Pre-loaded international test standards.
  • Test Voltage: OTS 60PB -30 to +30 kVrms
  • Temperature sensor resolution 1 ºC
  • Power supply Line voltage 85 to 265 VAC, Line frequency 50/60 Hz
  • Batteries (option) Lead acid 2 x 12 V 4 Ah, or NiMH 24 V 2 Ah
  • Interfaces USB 2.0 compatible, 2 x USB type-A (memory stick) 1 x USB type-B (printer or PC)
  • Display 320 x 240 QVGA colour display with backlight
  • Dimensions OTS 60PB 520 mm x 340 mm x 250 mm
  • Weight: 16 kg (printer, no battery), 16.8 kg (printer, NiMH battery)
Technical Document

Megger OTS60PB Datasheet

Megger OTS60PB Datasheet
  • Megger OTS60PB Oil Tester
  • Vessel 400ml Assembly (Stirrer Lid Fitted)
  • 12 V Vehicle Charger Lead
  • Full Electrode Set - IEC and ASTM
  • IEC and ASTM Impeller
  • Printer
  • NiMH Battery
  • Electrode Gauge Set
  • Calibration Certificate
  • Power DB Guide
  • Quick Start Guide
  • OTS Vessel Preparation Guide

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Megger OTS60PB Oil Tester

hire Price

ESS Code: HOTS.3
£315.00 Weekly

Rates exclude VAT and Damage Waiver

£315.00 Ex. VAT


Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • Tests voltages up to 60kV.

  • Suitable for mineral, ester and silicon oils.

  • Direct output voltage or current breakdown detection.

  • Automatic oil temperature measurement.
