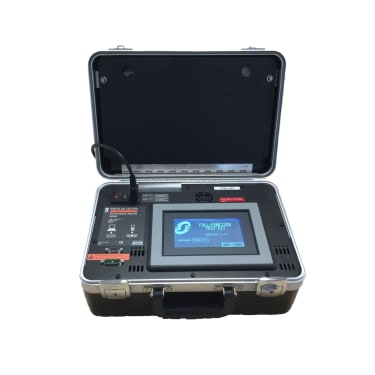

Merlin Gerin 33595 NT Portable Relay Test Kit
The Merlin Gerin 33595 Test Kit is suitable for testing solid state electronic trip units and circuit breakers, the Portable Relay Test Kit also provides testing capabilities for MicroLogic Units. Full-function test kit consisting of a signal-injection box which can be used alone or by connecting to a PC.
The signal-injection box in the full-featured Merlin Gerin 33595 test kit can be used either alone or in conjunction with a personal computer (PC). The Windows 95, 98, and Windows NT operating systems are all compatible with the optional test kit software. The testing of a wide range of trip units in Masterpact® NW/NT, Powerpact®, and Compact® circuit breakers is supported by the Full-function Test Kit (FFTK).
ESS Code: HRPH.7
- The mechanical operation of the circuit breaker
- The electrical continuity of the connection between the tripping coil and the trip unit
- Trip unit operation
- Display of settings
- Operating tests on the electronic component
- Automatic and manual tests on protection functions (trip curve verification)
- Tests on the Zone-Selective Interlocking (ZSI) function
- Inhibition of the ground-fault protection for equipment Inhibition of the thermal imaging
- Save test data into test kit
- Operating temperatures: -20°C to 50°C
- Trip time measurement range: 0-3000 sec.
Set up an Account
Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.
Merlin Gerin 33595 NT Portable Relay Test Kit
hire Price
ESS Code: HRPH.7Rates exclude VAT and Damage Waiver
£362.00 Ex. VAT
Minimum hire period: 5 days
Lead time: 1 day
Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.
How to use Guide
Marketing Cookies must be enabled to view third party videos
Key Product Features
The mechanical operation of the circuit breaker
The electrical continuity of the connection between the tripping coil and the trip unit
Trip unit operation
Display of settings
