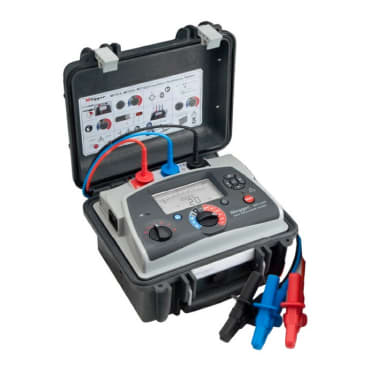

Megger MIT515 5kV Insulation Tester

Overview

The rugged and versatile Megger MIT515 insulation tester provides multiple testing applications within the field. Applications are applied to testing and maintenance of high voltage electrical equipment, measuring up to 10TΩ. The MIT 515 outweighs its predecessor in both weight and size whilst maintaining all essential testing functions, making carrying round the device much easier.

The Megger MIT515 data is presented on a large, clear, LCD backlight display, working simultaneously with an intuitive user interface with capabilities of displaying multiple results at one time. Simplistic navigation is achieved through two rotary switches, allowing simple operation when switching between preconfigured diagnostic tests. Such as, dielectric absorption ratio, polarisation index, and insulation testing.

ESS Code: HINT.6

Diagnostic tests: IR, Timed IR, DAR, and PI
Large LCD display with backlight
Measures capacitance of test object (with test voltages over 5000 V)
Safety rating: CAT IV 600 V

High current: 3 mA short circuit current
High noise immunity: 3 mA (5 kV and 10 kV) 6 mA (15 kV) of noise rejection
Li-ion battery: up to 6 hrs continuous testing @ 5 kV with a 100 M load, battery meets IEC 2133
Dedicated voltmeter function: 30 V to 660 V
Insulation resistance: 10 TΩ

Technical Document

Megger MIT515 Datasheet

Download

Megger MIT515 5kV Insulation Resistance Tester
3m Lead Set with Medium-Sized Insulated Clips (Part Number 1002-531)
Power Lead
User Guide on CD-ROM

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

What should an insulation test read?

Test results for an insulation test should be equal or over 1MΩ to complete and pass the test. Measuring the resistance between the live and neutrals.

Can you do an insulation test with a multimeter?

Yes, you can use a multi meter to check resistance of each conductor to ground and each conductor to the other two.

Can I hire Megger MIT515 5kV insulation testers?

Yes, ESS are a leading hire specialist for test and measurement equipment in the UK. You can hire the Megger MIT515 5kV insulation tester for as little as a week up to several years, available from any of our 19 locations across the UK.

Where can I have Megger MIT515 5kV insulation tester inspected?

All products supplied by ESS can be serviced, calibrated, and inspected at any of our 19 locations across the UK. One of our certified equipment specialists can inspect the Megger MIT515 5kV insulation tester at any time.
