ISA CBA 1000 Circuit Breaker Analyser

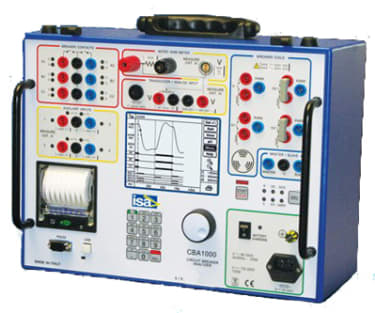

The CBA1000 Cicuit Breaker Analyser is a stand alone unit with a large graphical display. The unit is supplied with TDMS analysis software. TDMS performs test results analysis and creates test reports; it allows also to pre-define test plans. TDMS is also a powerful Test and Data Management software compatible with all ISA Test Sets.

ESS Code: HCBA.1

• Circuit Breaker timing test set suitable for EHV, HV and MV circuit breakers.
• Built-in 200 A microhmmeter - static and dynamic contact resistance measurement.
• 6 main and 6 resistive contact inputs.
• Up to 4 trip/close coils control.
• 7 analog inputs.


• DC Test current: 200 A, 100 A, 20 A
• Resistance measurement ranges 200 µOhm; 1 mOhm; 10 mOhm; 100 mOhm, user selectable
• Resolution: 1µOhm for all ranges.
• Resistance measurement accuracy: 1% of the reading ± 0.2% of the range.
• Number of analog inputs: 4 (6 Optional)
• 2 (4 optional) dedicated to Open and Close coil currents
• 1 dedicated to Dynamic and Static Resistance Measurement. Input voltage range: ± 5 V
