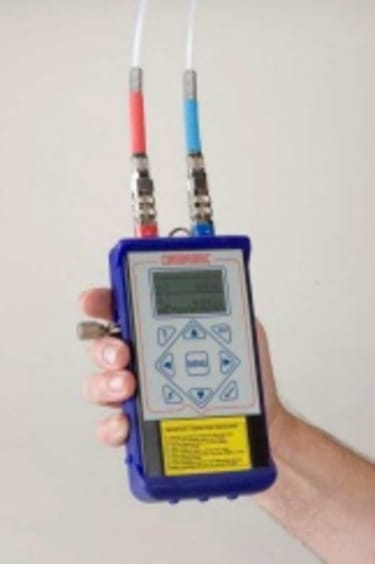

Comdronics AC6 Water Balance Meter

The Comdronic AC6 DP Commissioning Meter is engineered to provide commissioning engineers with a reliable and efficient tool for balancing HVAC systems. Its comprehensive onboard database includes performance characteristics of over 6,500 balancing valves from more than 90 manufacturers, facilitating direct readings of flow, differential pressure, percentage of design flow, and target flow.
Designed with a measurement range of 1.0 kPa to 800 kPa, the AC6 is suitable for high-pressure applications, accommodating system pressures up to 20 bar. The intuitive nine-button interface allows for easy navigation through its various functions, with all parameters clearly displayed on-screen.
Ideal for applications HVAC system servicing and utilities, the AC6 ensures precise measurements critical for system efficiency.
For businesses seeking a dependable solution for HVAC system commissioning, the Comdronic AC6 DP Commissioning Meter is available for hire, providing flexibility to meet diverse project requirements.


ESS Code: HPCL.2

• Extensive valve database with over 6,500 entries
• High-precision differential pressure measurement up to 800 kPa
• User-friendly nine-button interface
• Suitable for system pressures up to 20 bar
• Direct readings of flow and differential pressure
• Compact and robust design for field use
• Context-sensitive help function
• Multiple display modes for various measurement parameters
• Data storage for up to 100 measurement locations


• Measurement Range: 1.0 kPa – 800 kPa
• Accuracy: ±1% of reading or ±0.2 kPa, whichever is greater
• Maximum Allowable System Pressure: 20 bar
• Ambient Temperature Limits: +2°C to +35°C
• Display Modes: DP and Flow, Advanced, DP Only, Flow Only
• Data Storage Capacity: Up to 100 measurement locations


• Measurement Accuracy Differential pressure– Range 0.3-1kPa accuracy +/-0.03 kPa Range 1-10 kPa Accuracy +/-0.05 kPa Range10-250 kPa Accuracy +/-0.5% reading Hysteresis 0.2% span Measurement Range 0.1 kPa to 250 kPa Static Pressure 10 Bar Maximum

• Comdronic AC6-HP+ handset with protective rubber boot
• Pair of 20 bar connection tubes (1 metre each)
• Angle-pattern and straight-pattern Binder-style adaptors
• Set of T-handle hex keys (3mm, 4mm & 5mm)
• Screwdriver bit-holder with PH1 bit
• Lanyard
• Strainer maintenance kit
• Hard Carry case
• Operating instructions
• Calibration certificate


Lead time: 1 days
