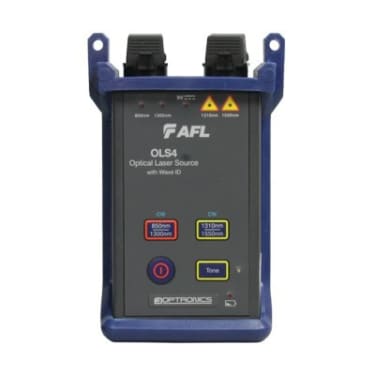

Noyes OLS4 Optical Light Source

The OLS4 from AFL is a hand-held, rugged, integrated two-port LED and LASER light source designed for performing insertion loss measurements on multimode or single-mode fiber optic links when used with an optical power meter. The LED and LASER outputs are stabilized to ensure accurate test results per current TIA/EIA requirements.
Equipped with industry standard 2 khz test tone, the OLS4 from AFL is an ideal tool to pair with an optical fiber identifier (OFI-200D) for use in fiber identification.



ESS Code: HFIB.3

• Rugged & dependable
• Simple user interface minimises training requirements
• Stabilised outputs for accurate loss measurements
• Wave ID supports testing up to three wavelengths simultaneously
• Field swappable output adapters provide flexibility
• Splash resistant controls
• Withstands one-meter drop test
• Controls designed for easy operation with gloves
• Efficient design provides long test time from globally available AA batteries
• External power adapter available for extended testing or lab applications


• Wavelength: 850 ±30 nm 1300 +30/-20 nm
• Spectral Width: 45 nm (typ) 120 nm (typ)
• Emitter Type: LED
• Safety Class: Class I FDA 21 CFR 1040.10 and 1040.11, IEC 60825-1: 2007-03
• Output Power: >-20 dBm, 62.5 μm multimode
• Output Stability: ±0.1 dB over 8 hours (after 5 minutes warm-up)
• Tone Output: N/A
• Power: 2 AA batteries, optional AC adapter
• Battery Life: SM port: 72 hours typical (40 hours minimum). MM port: 30 hours typical (20 hours minimum)
• Operating Temperature: -10 °C to 50 °C, 90 % RH (non-condensing)
• Storage Temperature: -30 °C to 60 °C, 90 % RH (non-condensing)
• Size (H x W x D): 14.0 x 8.1 x 3.8 cm (5.5 x 3.2 x 1.5 in)
• Weight: 0.29 kg (0.65 lb)
