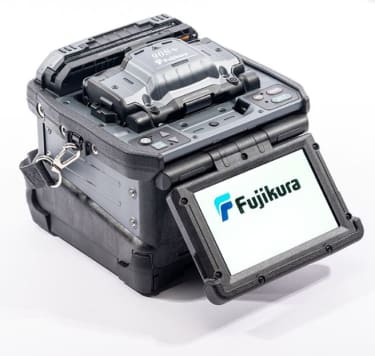

90S Fusion Splicer

The Fujikura 90S Single Core Fusion Splicer has many features which make it the market leader in Fusion Splicing equipment. These new features help reduce operation time by 50% over previous models and include such elements as Active Blade Rotation and Active Fusion Control

Active Blade Rotation by wireless connectivity to the CT50 Fibre cleaver gives the F90S the capability of automatic blade rotation when the F90S judges that the blade is worn. The Fujikura F90S can display remaining blade life and gives information on bade height change, position change or new blade required. The F90S automatically applies the optimum splice parameters depending on fibre type. The Fujikura F90S analyses both the L & R cleave end faces to perform the best option for fusion control

ESS Code: HFIB.6

  • The Fujikura F90S is packed with new features such as Active Fusion, enabling the F90S to control fusion by fibre brightness, cleaver condition and fibre discrimination.
  • Active Blade Management allows the F90S to wirelessly control the CT50 cleaver.
  • The sheath clamp is optimised for 60mm length protection sleeves.
  • The length of the slice point to the edge of the sheath clamp is set to 30mm which makes it easy to centre the protection sleeve over the splice.
  • With the F90S the operator can complete an entire splicing and heating process without the need to touch the F90S and only touching the fibre

  • Single fibre splice on single and multimode mode fibre. AC adaptor Input AC100 to 240V, 50/60Hz, Max.
  • 1.5A Battery pack
  • Type Rechargeable Lithium Ion Output Approx. DC14.4V, 6380mAh Capacity *6 Approx. 300 splice and heat cycles
  • Temperature Recharge : 0 to 40°C
  • Long Term Storage : -20 to 30°C Battery life *7 Approx. 500 recharge cycles
  • *6 Test condition (1) Splice and heat time : 1 minute cycle (2) Using the splicer power save settings, depending on our testing condition. (3) Using a not degraded battery (4) At room temperature
  •  The battery capacity changes when testing with different conditions from the above.
  •  *7 The battery capacity decreases to a half after approx. 500 discharge and recharge cycles, The battery life is shortened further when using outside of the storage temperature range, operating temperature range, if completely discharged by storing for a long time without recharging.

Technical Document

90s Fusion Splicer Datasheet

90s Fusion Splicer Datasheet

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

90S Fusion Splicer

hire Price

ESS Code: HFIB.6
£327.00 Weekly

Rates exclude VAT and Damage Waiver

£327.00 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • The Fujikura F90S is packed with new features such as Active Fusion, enabling the F90S to control fusion by fibre brightness, cleaver condition and fibre discrimination.

  • Active Blade Management allows the F90S to wirelessly control the CT50 cleaver.

  • The sheath clamp is optimised for 60mm length protection sleeves.

  • The length of the slice point to the edge of the sheath clamp is set to 30mm which makes it easy to centre the protection sleeve over the splice.
