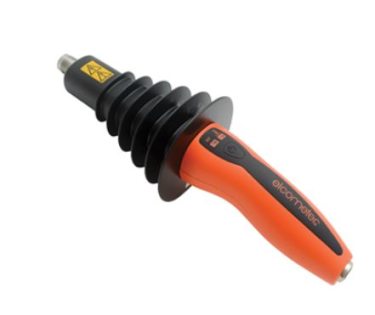

Elcometer 266 Holiday Detector

Detection of flaws and voids in coatings. A probe is connected to the surface under test to detect cracks and even the smallest of holes in the substrate coating, not visible to the naked eye. Invaluable when checking for potential corrosion after the application of paint and protective coatings on metal. Ideal for inspecting pipeline and other protective coatings. A voltage probe is connected to the surface to see if a current flows, thereby completing the circuit and indicating a hole, or flaw (holiday) in the applied coating. The voltage calculator automatically sets the correct voltage from your coating thickness value, there is no need to use look up tables.

ESS Code: SHOL.1

• 15 kV probe for wider voltage setting
• Checks porosity on coatings up to 300 mil thick
• Automatically set the test voltage from the coating thickness value
• Bright LEDs on the handle as well as audible alarm output to indicate an issue
• Dual safety switch on the handle to avoid accidental switch on and specialised ribbing provides superior protection. Specifically designed to meet EN 61010


High voltage out of 15kV
Voltage accuracy +/- 5%
Case Dimensions – 520 x 370 x 125mm
Weight – 1.8 Kgs
Power - Rechargeable Battery Pack; battery fully charged within 4 hours. Lasts approx. 15 hours using the DC15 Probe


• Digital Display
• DC15 Brush Probe
• Earth signal return lead
• Rechargeable Lithium ion battery pack
• Charger
• Carry Strap
• User guide
• Calibration certificate


Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.
