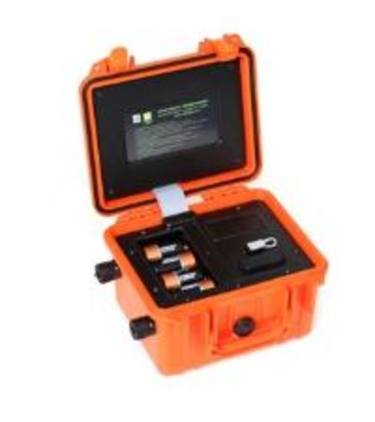

V9000 Seismograph Modem/ Twin Channel

The V9000 Seismograph Modem Twin Channel advanced device enables simultaneous vibration measurements at two distinct locations, providing a comprehensive understanding of site conditions. Equipped with a built-in modem, users can remotely access real-time data, adjust settings, and receive instant alerts, enhancing operational efficiency. The seismograph's robust design ensures reliable performance in challenging environments, while its compliance with UK standards, including BS 5228 Part 2:2009 and BS 7385 Part 2:1993, guarantees accurate and standardised measurements. With an impressive battery life of up to 40 days, the V9000 minimises downtime and reduces the need for frequent maintenance.

ESS Code: HVIB.19

• Simultaneous dual-location vibration monitoring
• Remote data access and real-time monitoring
• Extended battery life up to 40 days
• Compliance with BS 5228 Part 2:2009 and BS 7385 Part 2:1993
• Large LCD screen with graphical data representation
• Multiple text alarm functions for instant notifications
• 7-day programmable timer and sleep mode
• GPS location tracking capability
• Compatible with Vibrock Connect Android App for live data monitoring


• Dimensions: 300 mm x 250 mm x 180 mm
• Weight: 3 kg
• Power Source: Four Alkaline 'D' cells, or mains supply
• Battery Life: Up to 40 days continuous monitoring (24 hours/day)
• Memory Capacity: Approximately 500 trigger events or 21 days continuous recording at 1-second intervals
• Display: 40-character x 16-line alphanumeric LCD with graphical representation and backlight
• Monitoring Modes: Trigger mode for blast monitoring; continuous mode for piling, rail, and road traffic monitoring
• Data Storage: Records data for all three axes at 1 ms intervals
• Frequency Plotting: In accordance with BS 5228 Part 2:2009 and BS 7385 Part 2:1993

Modem Specifications:

• Power Source: Separate internal 12V battery providing up to 30 days of remote monitoring
• GSM Functions: Remote download of seismograph memory, real-time monitoring, SMS alarm warnings, and programmable timed data uploads


• V9000 Seismograph Modem Twin Channel unit
• Built-in modem for remote access
• Standard triaxial geophone
• Set of four Alkaline 'D' cell batteries
• USB cable for data transfer
• Vibrock plug-and-play software for PC
• Protective carrying case
• User manual and quick-start guide
• Calibration certificate


Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.
