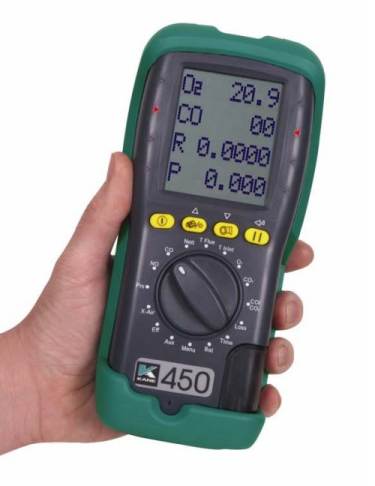

Kane 450 Flue Gas Combustion Analyser

The Kane KM450 Combustion analyser is a versatile hand held analyser capable of reading O2, CO, CO2, CO/CO2 Ratio, flue temperature and boiler pressure. It is the ideal tool for commissioning or servicing condensing and high efficiency boiler systems. With its large back lit LCD Display, readings can be easily viewed by selection on the rotary switch. Supplied with a printer, results can be stored or printed off immediately. With its high accuracy differential pressure sensor draft can be measured and differential pressures adjusted for improved efficiency. As well as boiler CO, room CO can be measured too testing for boiler CO leakage. The KM450 can be used with Multi gas fired systems for use in natural gas, propane, butane, 28/35 oils and LPG boiler systems, and with up to 12 hours usage from the batteries.

ESS Code: HGCM.4

• H2 compensated CO sensor is accurate to 4000ppm.
• Easy-to-use 16 position rotary dial.
• High accuracy manometer & differential temperature measurement.
• Multi-fuel: Natural gas, Propane, Butane, LPG, Light Oils (28/35 sec) and wood pellets.
• Separate reportsfor: combustion, pressure let-by & tightness temperature CO build up.
• Battery life typically 12+ hours.

• Capable of reading up to 10 parameters including O2, CO, CO2, CO/CO2 Ratio, flue temperature and boiler pressure
• Complete with infra-red printer for results storage
• High accuracy differential pressure sensor built in
• Thermocouple attached to flue gas inlet probe for flue temperature
• Multi gas measurements for use in natural gas, propane, butane, 28/35 oils and LPG boiler systems


• Soft Carry case
• Charger
• Printer
• Inlet tubing
• Printer rolls x 3
• Calibration Certificate


Lead time: 1 days
