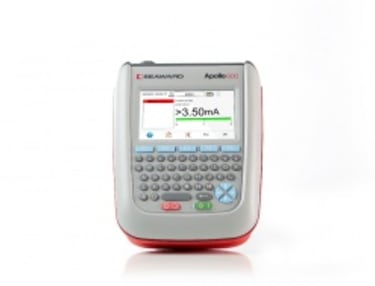

Apollo PAT Tester

The Seaward Apollo 600 has remote data transfer from field to office & includes built in universal & electrical risk assessment tools, user configurable tests for non-electrical tests & inspections e.g. fire extinguishers, PPE & additional health & safety certificates with the ability to update. The Seaward Apollo 600 allows for Risk-based PAT testing offering a comprehensive suite of fast and accurate electrical safety tests to enable any workplace appliance to be tested, including 3 phase equipment and residual current devices (RCDs). The Seaward Apollo 600 also enables point to point testing of fixed appliances as required by the 4th edition of the IET Code of Practice for In-Service Inspection and Testing of Electrical Equipment. In addition to its electrical test features, the Apollo 600 has a built in electrical risk assessment tool which can be used to easily determine a risk-based suggested retest period as required by the IET 4th Edition Code of Practice for In-service Inspection and Testing. With the inbuilt board flash colour camera the Apollo 600 can store up to 2000 images & 50,000 appliance records.

ESS Code: HPAT.1

• The Seaward Apollo 600 Key Features include a High definition colour display.
• On board colour camera with flash to store up to 2000 images and 50,000 appliance records.
• Remote data transfer from field to office, Bluetooth and USB connectivity.
• Built in universal and electrical risk assessment tools.
• User configurable tests – for non-electrical tests and inspections e.g. fire extinguishers and PPE.


• Earth Continuity : Range: 0.01 – 19.99Ω
•  Insulation Resistance Range: 0.01MΩ - 19.99MΩ
•  IEC Lead Test: Live / Neutral Checks for o/c, s/c and crossed
•  Protective Conductor Current/Load Ranges: 0.01mA to 19.99mA
•  Touch Current Range: 0.00 – 3.50mA
•  Load Power/Current Range: 0.00kVA – 4.00kVA 0.00A – 16.00A
•  Alternative Leakage Current Range: 0.00mA to 19.99mA
•  RCD Test Range: 30mA / 150mA rms 0ms - 2000ms
•  Power Socket Test Voltage Range: 207V – 253V


• Test Voltage: 230V +10%, -15%, maximum load current 16A
• Earth Continuity Test Current: ±200mA DC
• Insulation Resistance Test Voltage: 500V / 250VDC @ 1mA nominal
• RCD Test Current: 30mA / 150mA rms sinusoidal
• Memory Size: Up to 50,000 records & 2,000 photos
• Power Source: Mains or rechargeable battery pack
• Weight: 1.5kg
• Dimensions: 230mm x 150mm x 100mm


• Seaward Apollo 600+ PAT Tester
• Carry case
• Test leads
• USB download lead
• Apollo series checkbox
•  Quick start guide
• Calibration certificate


Lead time: 1 days
