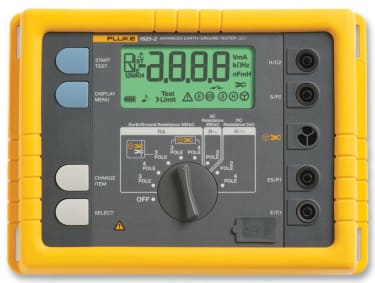

Fluke 1625-2 Earth Ground Tester

The Fluke 1625-2 is designed to provide simpler, faster earth ground tests than ever before. the instrument compromises internal memory storage for up to 1500 records, which are accessible via a usb port for rapid data transfer and viewing of results.

Fluke 1625-2 earth ground testers are able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall of Potential test method must be used as with traditional staked earth testers. With the Fluke 1625-2 you can perform3 and 4 pole Fall of Potential tests and standard soil Resistivity tests. With Stakeless testing, the earth ground rod does not need to be disconnected—leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system— a major time saver. You can also perform earth ground tests in places you’ve not considered before: inside buildings, power pylons, or anywhere you don’t have access to soil.

ESS Code: HERS.13

  • Staked testing using the 3- and 4-pole Fall of Potential method.
  • Earth resistance loop tests.
  • 4-pole Soil Resistivity testing. Selective earth ground rod testing using 1 clamp.
  • Stakeless earth ground rod testing using 2 clamps.
  • R* measurement—calculates earth ground impedance at 55 Hz to more accurately reflect the earth ground resistance that a fault-to earth ground would see

  • A 3-pole ground resistance measurement (IEC 1557-5) Switch position Resolution Measuring range Accuracy Operating error RA 3-pole 0.001 Ω to 10 Ω 0.020 Ω to 19.99 kΩ ± (2 % rdg + 3 d) ± (5 % rdg + 3 d)
  •   A 4-pole ground resistance measurement (IEC 1557-5) Switch position Resolution Measuring range Accuracy Operating error RA 4-pole 0.001 Ω to 10 Ω 0.020 Ω to 19.99 kΩ ± (2 % rdg + 3 d) ± (5 % rdg + 3 d)
  •  A 3-pole selective ground resistance measurement with current clamp (RA ) Switch position Resolution Measuring range Accuracy Operating error RA 3-pole 0.001 Ω to 10 Ω 0.020 Ω to 19.99 kΩ ± (7 % rdg + 3 d) ± (10 % rdg + 5 d)
  •  Stakeless ground loop measurement ( ) Switch position Resolution Measuring range Accuracy Operating error RA 4-pole 0.001 Ω to 0.1 Ω 0.020 Ω to 199.9 Ω ± (7 % rdg + 3 d) ± (10 % rdg + 5 d)

Technical Document

Fluke 1625-2 Datasheet

Fluke 1625-2 Datasheet
  • Fluke 1625-2

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Fluke 1625-2 Earth Ground Tester

hire Price

ESS Code: HERS.13
£96.60 Weekly

Rates exclude VAT and Damage Waiver

£96.60 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • Staked testing using the 3- and 4-pole Fall of Potential method.

  • Earth resistance loop tests.

  • 4-pole Soil Resistivity testing. Selective earth ground rod testing using 1 clamp.

  • Stakeless earth ground rod testing using 2 clamps.
