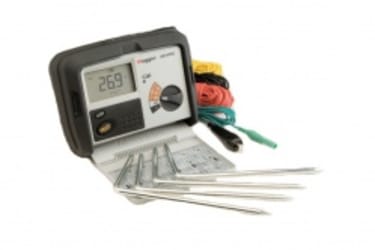

DET4TCR2 Earth Tester

The Megger DET4TCR2 Rechargeable battery powered 4-terminal tester with selectable test frequencies, greater measurement sensitivity and attached rod technique and stakeless measurement capability, including a current measuring function for ART (Attached Rod Technique) testing capabilities.

The Megger DET4TCR2 can measure resistance from 0.01 ohms to 200 kΩ, a key capability for soil resistivity testing. Also, to allow accurate testing in noisy environments, the instruments are capable of rejecting noise up to 40 V peak to peak. With the added ART function, on-site grounds can be tested separately without having to remove the utility connection. They also provide a stakeless testing capability. This method allows the operator to use the instrument like a clamp-on ground tester in applications where that method is viable, while also being able to operate as a fall of potential tester if required.

ESS Code: HERS.5

  • The Megger DET4TCR2 has a selector switch which makes the selection of 2, 3 or 4 pole tests easy and the design makes the fitting of shorting links to perform 2-pole tests a thing of the past.
  • A large, clear, easy to read LCD and thumb sized test button also make the instruments particularly well suited to the outdoor conditions of ground testing.
  • In addition to this ease of use feature, the instruments automatically check the connection and conditions of the P spike, C spike, and also the level of ground noise, indicating the status on the display.
  • They also include a voltmeter to enable measurement of ground voltage.

  • The Megger DET4TCR2 is rated IP54 for outdoor use.
  • It is designed to meet stringent safety standards and rated CAT IV 100 V.
  • The Megger DEDET4TCR2 is powered from a rechargeable DET4 Series Earth/Ground Resistance & Soil Resistivity Testers AA cells.
  • The battery charger is built in and the instrument is supplied with an AC/DC adapter.

Technical Document

DET4TCR2 Datasheet

DET4TCR2 Datasheet

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

DET4TCR2 Earth Tester

hire Price

ESS Code: HERS.5
£73.50 Weekly

Rates exclude VAT and Damage Waiver

£73.50 Ex. VAT

1

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

  • The Megger DET4TCR2 has a selector switch which makes the selection of 2, 3 or 4 pole tests easy and the design makes the fitting of shorting links to perform 2-pole tests a thing of the past.

  • A large, clear, easy to read LCD and thumb sized test button also make the instruments particularly well suited to the outdoor conditions of ground testing.

  • the instruments automatically check the connection and conditions of the P spike, C spike, and also the level of ground noise, indicating the status on the display.

  • They also include a voltmeter to enable measurement of ground voltage.
