Megger Teleflex SX-1

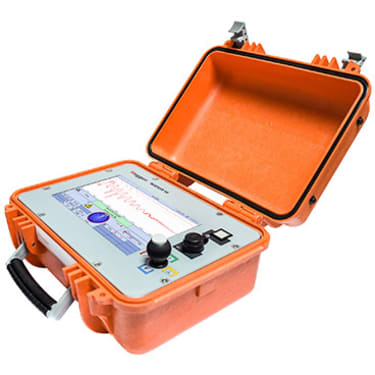

The Teleflex SX-1 is a portable two-channel time domain reflectometer (TDR) designed to provide quick, effective, accurate, and safe pre-location of faults in cable installations. It supports all high voltage pre-loaction methods, comes with multi-shot technology with 15 fault traces per arc reflection shot, and can be operated on its own or in conjunction with surge wave generators (thumpers).

The instrument is operated via a single jog dial and an intuitive, well-proven piechart user interface. Its large and bright colour display with touchscreen functionality further enhances operator comfort and supports quick and accurate field work. A Linux-based operating system provides the highest standard of stability and reliability.

The Teleflex SX-1 is powered from its internal rechargeable battery and may be operated in battery only mode or via smart charger connected to a mains power supply.

It is housed in a rugged, robust, field-proven case making it suitable for use in hostile or challenging environments.

The ProRange technology is a distance-dependent exponential de-attenuation mode. It counteracts the exponential attenuation caused by the cable’s filter characteristics, and thus ProRange greatly improves distant reflections without distorting the near field. It is a very beneficial feature for cables with many joints (splices), for very long cables, and for cables with high attenuation

ESS Code: HCFL.10

  • Standalone operation or operation in conjunction with surge wave generators (thumpers)
  • Single jog dial operation with piechart interface and 'No-User-Intervention Auto mode' ARM
  • Multi-shot technology with 15 fault traces per arc reflection shot
  • ProRange distance-dependent de-attenuation for significantly improved images of far-away reflections
  • Supports all existing HV pre-location methods
  • 'Auto-ranging' cable end recognition, 'Auto-find' cursor to fault position
  • Rugged, robust, outdoor field-ready case
  • Pulse generation: Unipolar
  • Pulse amplitude: 50 V fixed
  • Pulse width: 20 ns to 10 μs
  • Measuring range XR: 20 m ... 160 km at VOP = 80 m/μs
  • Resolution: 0.1 m at VOP = 80 m/μs
  • Accuracy: 0.1%
  • Timebase accuracy: Better than 100 ppm
  • Data rate: Faster than 400 MHz
  • Dynamic range: More than 96 dB
  • ProRange: More than +22 dB (distance-dependent de-attenuation)
  • Velocity of propagation: 10 to 149.9 m/μs, VOP settable to m/μs or ft/μs or nvp
  • Output impedance: 50 Ω, no dedicated internal compensation necessary
  • ARM® trigger: ΔU trigger technology with automatic adjustment
  • External voltage: < 400 V, only with separation filter
  • Memory: 4 GB for program and data
  • Connections: USB, BNC, CAN
  • Protection class: IP 65 enclosed, IP 54 open
  • Battery: 12 V Li-Ion rechargeable battery
  • Dimensions (W x H x D): 362 x 195 x 305 mm (14.2 in. x 7.6 in. x 12 in.)
  • Weight: 7.8 kg (17.1 lbs)
  • Operating temperature: - 10 °C to + 50 °C (14 °F to +122 °F)
  • Storage temperature: - 20 °C to + 60 °C ( -4 °F to +140 °F)
