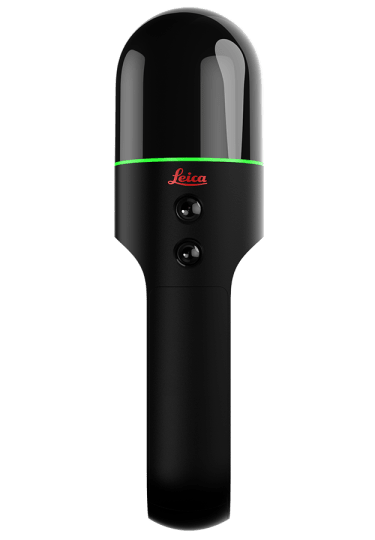

Leica BLK2GO Handheld Laser Scanner

Overview

The Leica BLK2GO is a handheld imaging laser scanner that creates a 3D digital twin while you walk through a space. It is the fastest and easiest way to scan a large building, structure or environment.

The BLK2GO is a lightweight and compact device that can be easily carried and used in various environments. Its ergonomic design allows for comfortable operation during scanning.

The BLK2GO drastically reduces the time needed to plan and scan on-site, and it doesn’t need a tripod or a trained operator to run.

BLK2GO's GrandSLAM technology combines LiDAR SLAM, Visual SLAM, and an IMU to deliver best-in-class handheld mobile mapping performance. Ability to capture large indoor, outdoor, underground, complex, and multi-level spaces with speed and confidence.

The scanner is suitable for a wide range of applications, including construction documentation, facility management, archaeology, forensics, and virtual reality (VR) content creation. It can be used indoors, outdoors, and even in challenging or complex environments.

The BLK2GO operates wirelessly, allowing you to move freely without the need for cables. Connecting to a mobile device via Wi-Fi the data is streamed live so you can visualise while scanning.

ESS Code: HBLK.4

Live 2D and 3d Visualisation
Device status such as battery life, data storage and more

Housing - Black anodized aluminium
Dimensions - Height: 279 mm / Diameter: 80 mm
Weight - 650 g (775 g including battery)
Transport cover - BLK2GO transportation case
Stand-alone operation - One-button operation
Internal memory - 24 hours of scanning (compressed data) / 6 hours (uncompressed data)
Battery - Exchangeable, rechargeable Li-Ion battery (Leica GEB821) 45-50 minutes
Laser class - 1 (in accordance with IEC 60825-1)
Wavelength - 830 nm
Field of view - 360° (horizontal) / 270° (vertical)
Range - Min. 0.5 - up to 25 m

Technical Document

Leica BLK2GO Laser Scanner Datasheet

Download the Leica BLK2GO Laser Scanner Datasheet

Download

Leica BLK2GO Handheld Laser Scanner
Case with battery holders
Table stand
Charger
Mobile Phone Holder
USB-c cable
Wrist Strap
Mission bag

Lead time: 1 days

Delivery and Collection charges will be displayed in the basket at checkout stage and will vary depending upon your location and transport method applied.

What are the applications of the Leica BLK2GO Handheld Laser Scanner?

Architecture
Architects and other AEC professionals use the BLK2GO to document as-built conditions for the restoration and renovation of existing spaces. Capture massive buildings with speed, accuracy, and efficiency to create the foundation for BIM designs and CAD drawings

Facility Management
Facility managers can use BLK2GO scans to make accurate and informed decisions about their properties. Detailed floorplans allow facility managers to understand and improve the layout of specific facilities and to better understand the precise location of assets in their key directories.

Space Planning
The BLK2GO can be used to map large and complex buildings like hospitals, offices, and college campuses with unprecedented speed. The accurate floorplans that can be built from BLK2GO data streamline the retrofit process

Real Estate
In real estate, every square meter counts. Accurate floorplans generated with BLK2GO ensure that owners get what their property is worth, and buyers know exactly what they are paying for.

Engineering
Engineers bring their problem-solving skills to a project. When designing with specific goals in mind, engineers require the right tools; with the BLK2GO, they can scan spaces and digitally analyse, design, and build the best solutions for the project at hand.

Set up an Account

Login or create an account to gain access to your account history and document library. Link your Web Account to your ESS Credit account to hire online, contact us for details.

Leica BLK2GO Handheld Laser Scanner

hire Price

ESS Code: HBLK.4

£1,260.00 Weekly

Rates exclude VAT and Damage Waiver

£1,260.00 Ex. VAT

Qty

On Hire Date

Off Hire Date

Minimum hire period: 5 days

Lead time: 1 day

Please note you will be charged for the minimum hire period if your order is for a period less than this. A web account linked to your ESS Credit account is required to hire online.

Key Product Features

Portable and Handheld
Versatile Scanning
GrandSLAM Technology
Quick Scanning
